Product Name       : Teflon carbon fiber heating wire
Product Specifications : 36K,24K,12K,06K,03K,02K,01K
Product Resistance  ： 10.8Ω/M, 17Ω/M, 33Ω/M, 66Ω/M, 133Ω/M, 210Ω/M, 420Ω/M,
Insulation Materials ： FEP,PFA
Voltage Standard   ：200℃-250℃,300V
Product Packaging ：500M/ Roll < Provide processing services >
Product Color     :  White , Brown red , Transparent , Yellow , Blue , Green

Teflon Carbon Fiber Heating Wire

Carbon fiber heating wire, referred to as the electric heating wire, can emit 8-15UM infrared band when heated, so it is also called the far infrared heating wire, the internal use of carbon fiber as the heating conductor, the conductor color is black and shiny, the use of Teflon as the insulation layer, with <ω> as the resistance unit, the thickness unitcolor is optional, product temperature limit is 250℃, Long-term service life below 180℃ for more than 15 years, the product tensile and bending performance is good, usually can withstand the tension of 10KG-50KG, the product bending can reach more than 100,000 times, cost is low, is recognized by the industry as one of the best selling points of heating components.

Other Product by XingGuang
Silicone electric heating wire , PVC heating wire , Carbon fiber heating wire , Teflon heating wire , double layer heating wire , the far infrared heating sheet , Carbon fiber heating sheet , Low voltage heating sheet , Soft heating sheet , Aluminum foil heater , Non-woven heating sheet , Massager heating sheet .

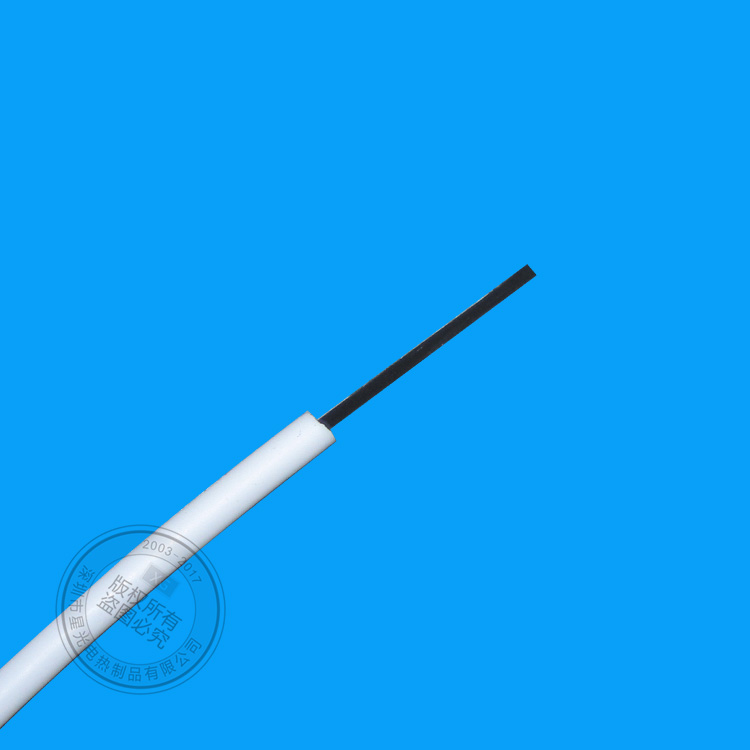

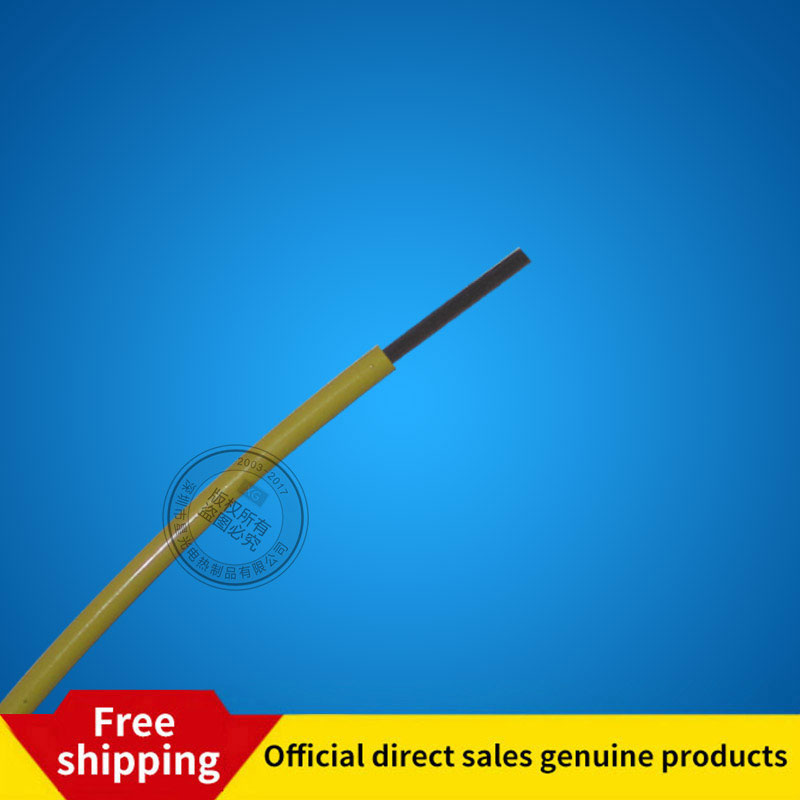

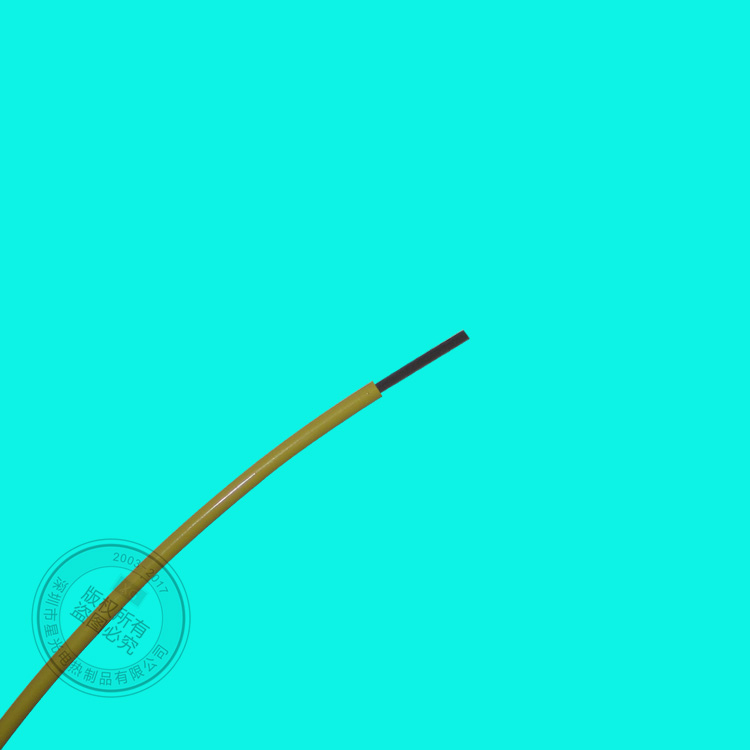

Teflon Carbon Fiber Heating Wire<picture>


Application field
Oil circuit antifreeze, Household appliances, medical use, rice cooker, electric towel box, microwave oven, electric belt, massager, massage chair, hot pad, foot massage machine, jade mattress, medical equipment, farming heating, electric towel rack, refrigerator defrost, cold storage antifreeze, toilet lid, electric heater, electric floor heating, towel thermostat, etc., electric bra, electric eye mask, electric insole, mobile sauna room, prostate treatment Therapy instrument, Chinese medicine kit, hot compress salt kit, foot bath,

Product Name       : Teflon carbon fiber heating wire
Product Specifications : 36K,24K,12K,06K,03K,02K,01K
Product Resistance  ： 10.8Ω/M, 17Ω/M, 33Ω/M, 66Ω/M, 133Ω/M, 210Ω/M, 420Ω/M,
Insulation Materials ： FEP,PFA
Voltage Standard   ：200℃-250℃,300V
Product Packaging ：500M/ Roll < Provide processing services >
Product Color     :  White , Brown red , Transparent , Yellow , Blue , Green

Teflon Carbon Fiber Heating Wire

Carbon fiber heating wire, referred to as the electric heating wire, can emit 8-15UM infrared band when heated, so it is also called the far infrared heating wire, the internal use of carbon fiber as the heating conductor, the conductor color is black and shiny, the use of Teflon as the insulation layer, with <ω> as the resistance unit, the thickness unitcolor is optional, product temperature limit is 250℃, Long-term service life below 180℃ for more than 15 years, the product tensile and bending performance is good, usually can withstand the tension of 10KG-50KG, the product bending can reach more than 100,000 times, cost is low, is recognized by the industry as one of the best selling points of heating components.

Other Product by XingGuang
Silicone electric heating wire , PVC heating wire , Carbon fiber heating wire , Teflon heating wire , double layer heating wire , the far infrared heating sheet ,
Carbon fiber heating sheet , Low voltage heating sheet , Soft heating sheet , Aluminum foil heater , Non-woven heating sheet , Massager heating sheet .

Teflon Carbon Fiber Heating Wire<picture>


Application field
Oil circuit antifreeze, Household appliances, medical use, rice cooker, electric towel box, microwave oven, electric belt, massager, massage chair, hot pad,
foot massage machine, jade mattress, medical equipment, farming heating, electric towel rack, refrigerator defrost, cold storage antifreeze, toilet lid, electric heater, electric floor heating, towel thermostat, etc., electric bra, electric eye mask, electric insole, mobile sauna room, prostate treatment Therapy instrument, Chinese medicine kit, hot compress salt kit, foot bath,
